Custom Resolution Utility (CRU)

[kaladar]

(08-09-2023 11:20 AM)ToastyX Wrote:  I'm not aware of any issue that would persist after using DDU. What did you do to make the new monitor work again? I would still like to see a screen shot of Device Manger listing the display adapters and the monitors with the old monitor and the new monitor, separately if you can't use them at the same time. If CRU sees the monitors, run this with the old monitor and the new monitor separately, and post the test.txt here: https://www.monitortests.com/EDID-test.zip

Ah well, didnt do it seperately now (but you see naming and what's active, screen was with "drivers/profile" / without it would also show "Gen. (DisplayName)" all OK). On normal boot the new (Samsung) works fine, its just on safe mode (now). My guess is that it takes priority so there wont be anything displayed on the old (Benq) one, and on the Samsung I'm not sure cause I well had to set add. resolutions in nv cp but 640x480 did display so ... I am not sure which mode might be used on the Samsung on safe mode. It's also strange that I cant choose any else resolution on Benq in safe mode (at least 720p, 1024x768 or s.t. which safe mode normally can, 480 is even problematic with some tools like screenshot as i could not click ok but keyboard control saved me ^^)
About what I did not sure what triggured it. The Samsung came back to work when I did first connect the Benq, boot and then additionally connect the Samsung. Other way round wouldn't help now.

[Ronyn77]

(08-09-2023 11:20 AM)ToastyX Wrote:

(08-09-2023 10:51 AM)Ronyn77 Wrote:  Just to let you know, I ran the EDID test remotely with the TV turned off. I'm not sure if this could potentially influence the results.

Was this after restarting? NVIDIA's driver seems to be ignoring the override. Does adding two CTA-861 extension blocks make any difference? You don't have to put anything in them.

As long as the TV is detected, it should be fine. Some TVs disconnect when turned off, but that doesn't seem to be the case here.

However, it doesn't appear to be working. Please check the attached pictures for reference.
https://imgur.com/a/5QMRWQS
Do you have any other ideas?

[Soylent]

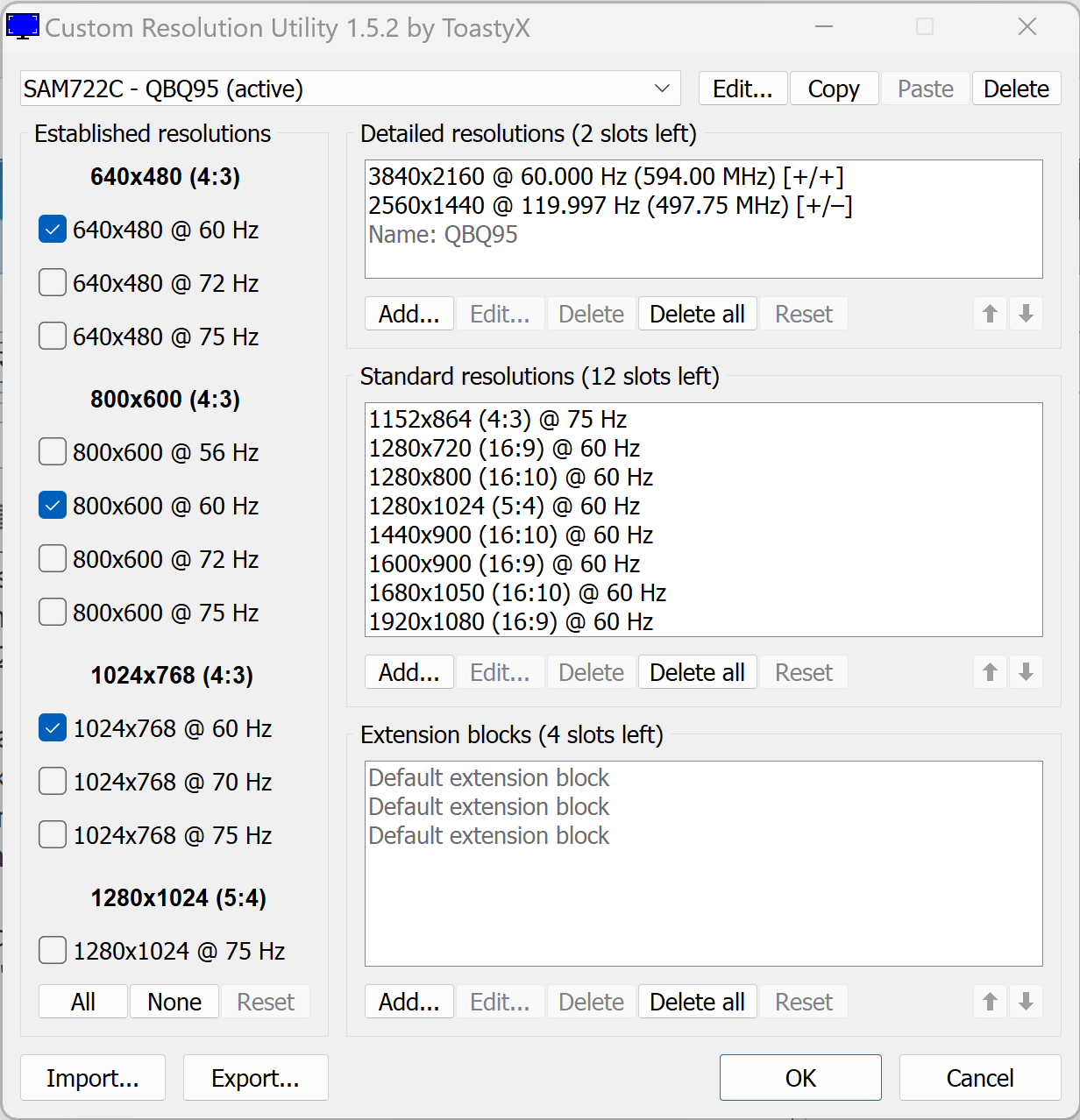

Hello, I'm having a similar issue. I just upgraded from an Nvidia 2080 to a 3080 on my Windows 11 desktop, and now my Samsung QN95B TV will not work on anything except 144hz when Gaming Mode is enabled. I can change resolutions, but if I select 120hz or 100hz, I just get an HDMI disconnect screen. I noticed in CRU that when Gaming mode is enabled, there are 3 "Default Extension Blocks" in the Extension blocks section, but all 3 of them are empty. I'm not sure where it's even getting the 144hz from, but HDR 10-bit RGB and VRR seem to be working normally. However, if I disable Gaming mode CRU shows one entry for "CTA-861" with a bunch of settings in it, but with Gaming Mode disabled the maximum settings in Windows and NVCP is 60hz, no HDR, and only YCBCR444 color. It certainly should be able to do 120hz and HDR without Gaming Mode enabled.

My previous card, the 2080, didn't have any of these issues with this TV. Other than it being HDMI 2.0 so I couldn't get 4K@120hz, but 4K@60hz and 1440@120hz worked flawlessly with HDR 8-bit and VRR enabled. It seems like the only change is going from HDMI 2.0 to 2.1.

I've tried doing a clean install of the nvidia drivers and reset-all in CRU. The HDMI cable itself might be defective or only 2.0, but if that was the case I don't think 4K@144hz would work at all. I'm only using it in Gaming Mode, but being stuck in 144hz is causing issues with some games that have hardcoded video settings. Any ideas?



  test.txt (Size: 18.67 KB / Downloads: 211)

[Ronyn77]

(08-09-2023 09:41 PM)Soylent Wrote:  Hello, I'm having a similar issue. I just upgraded from an Nvidia 2080 to a 3080 on my Windows 11 desktop, and now my Samsung QN95B TV will not work on anything except 144hz when Gaming Mode is enabled. I can change resolutions, but if I select 120hz or 100hz, I just get an HDMI disconnect screen. I noticed in CRU that when Gaming mode is enabled, there are 3 "Default Extension Blocks" in the Extension blocks section, but all 3 of them are empty. I'm not sure where it's even getting the 144hz from, but HDR 10-bit RGB and VRR seem to be working normally. However, if I disable Gaming mode CRU shows one entry for "CTA-861" with a bunch of settings in it, but with Gaming Mode disabled the maximum settings in Windows and NVCP is 60hz, no HDR, and only YCBCR444 color. It certainly should be able to do 120hz and HDR without Gaming Mode enabled.

My previous card, the 2080, didn't have any of these issues with this TV. Other than it being HDMI 2.0 so I couldn't get 4K@120hz, but 4K@60hz and 1440@120hz worked flawlessly with HDR 8-bit and VRR enabled. It seems like the only change is going from HDMI 2.0 to 2.1.

I've tried doing a clean install of the nvidia drivers and reset-all in CRU. The HDMI cable itself might be defective or only 2.0, but if that was the case I don't think 4K@144hz would work at all. I'm only using it in Gaming Mode, but being stuck in 144hz is causing issues with some games that have hardcoded video settings. Any ideas?

I had the exact same problem on my S95C. I initially thought the TV was defective and was considering returning it. I also have an RTX 3090. However, I managed to solve the issue by changing the HDMI cable. The cable that wasn't "working" was 3.05 meters long. I replaced it with a nearly identical one (both were Amazon Basics certified for 8K@60 at 48 Gbps), but this one was only 1.8 meters long. That did the trick, and it started working properly. Another thing you should check is the Nvidia control panel and ensure that the scaling is set to "Display." If it's set to "GPU," the video card will only output at 144Hz. Please verify these settings and let me know.

[wolfsherz]

hi guys, i own a lg oled 42" c2 screen, and a rtx 4080 notebook with windows 10. i'm trying to get rid of the non-native resolutions (4096x2160). i've edited it as in the instructions via the CTA-861 blocks and deleted the resolutions i don't want. after a reboot, are:

1. in the nvidia settings tool now alot settings are missing
2. when i look at the resolution via windows own resolution setting, the 4096*2160 still exists.

what am i doing wrong?

i would be very happy if someone could give me some tips.

here are some screenshots: https://imgur.com/a/Y9MPU15

[ToastyX]

(08-10-2023 01:30 PM)wolfsherz Wrote:  hi guys, i own a lg oled 42" c2 screen, and a rtx 4080 notebook with windows 10. i'm trying to get rid of the non-native resolutions (4096x2160). i've edited it as in the instructions via the CTA-861 blocks and deleted the resolutions i don't want. after a reboot, are:

1. in the nvidia settings tool now alot settings are missing
2. when i look at the resolution via windows own resolution setting, the 4096*2160 still exists.

what am i doing wrong?

i would be very happy if someone could give me some tips.

here are some screenshots: https://imgur.com/a/Y9MPU15

Run this and post the test.txt file here: https://www.monitortests.com/EDID-test.zip

[ToastyX]

(08-09-2023 09:41 PM)Soylent Wrote:  Hello, I'm having a similar issue. I just upgraded from an Nvidia 2080 to a 3080 on my Windows 11 desktop, and now my Samsung QN95B TV will not work on anything except 144hz when Gaming Mode is enabled. I can change resolutions, but if I select 120hz or 100hz, I just get an HDMI disconnect screen. I noticed in CRU that when Gaming mode is enabled, there are 3 "Default Extension Blocks" in the Extension blocks section, but all 3 of them are empty. I'm not sure where it's even getting the 144hz from, but HDR 10-bit RGB and VRR seem to be working normally. However, if I disable Gaming mode CRU shows one entry for "CTA-861" with a bunch of settings in it, but with Gaming Mode disabled the maximum settings in Windows and NVCP is 60hz, no HDR, and only YCBCR444 color. It certainly should be able to do 120hz and HDR without Gaming Mode enabled.

My previous card, the 2080, didn't have any of these issues with this TV. Other than it being HDMI 2.0 so I couldn't get 4K@120hz, but 4K@60hz and 1440@120hz worked flawlessly with HDR 8-bit and VRR enabled. It seems like the only change is going from HDMI 2.0 to 2.1.

I've tried doing a clean install of the nvidia drivers and reset-all in CRU. The HDMI cable itself might be defective or only 2.0, but if that was the case I don't think 4K@144hz would work at all. I'm only using it in Gaming Mode, but being stuck in 144hz is causing issues with some games that have hardcoded video settings. Any ideas?

The issue you're having is unrelated to CRU not being able to read the extension blocks. There's some NVIDIA-specific driver limitation involved, probably the GPU scaling issue that Ronyn77 mentioned because NVIDIA can't scale with DSC.

[ToastyX]

(08-09-2023 08:16 PM)Ronyn77 Wrote:  However, it doesn't appear to be working. Please check the attached pictures for reference.
https://imgur.com/a/5QMRWQS
Do you have any other ideas?

I wonder if there's a display-specific workaround in NVIDIA's driver that's causing this. Try using the "Edit..." button at the top and change the device ID to something else, like ABC1234. Also, you don't need LPCM three times. Just the first one with 8 channels covers everything.

[ToastyX]

(08-09-2023 12:58 PM)kaladar Wrote:  Ah well, didnt do it seperately now (but you see naming and what's active, screen was with "drivers/profile" / without it would also show "Gen. (DisplayName)" all OK). On normal boot the new (Samsung) works fine, its just on safe mode (now). My guess is that it takes priority so there wont be anything displayed on the old (Benq) one, and on the Samsung I'm not sure cause I well had to set add. resolutions in nv cp but 640x480 did display so ... I am not sure which mode might be used on the Samsung on safe mode. It's also strange that I cant choose any else resolution on Benq in safe mode (at least 720p, 1024x768 or s.t. which safe mode normally can, 480 is even problematic with some tools like screenshot as i could not click ok but keyboard control saved me ^^)
About what I did not sure what triggured it. The Samsung came back to work when I did first connect the Benq, boot and then additionally connect the Samsung. Other way round wouldn't help now.

NVIDIA's driver is able to read the EDIDs of both monitors, and nothing seems to be wrong with the EDIDs, so I'm still leaning towards a hardware issue, or the Windows install is messed up in some unusual way that I've never seen before because DDU+reinstalling NVIDIA's driver normally resolves any software display issues.

Usually the only reason the native resolution wouldn't be available with the driver loaded is some kind of bandwidth limitation. With DisplayPort, this can happen with a bad cable causing DisplayPort to negotiate a lower speed, but you mentioned trying other cables already, so it's like something is wrong with the DisplayPort portion of the video card.

Are you able to see the UEFI/BIOS settings? If so, does it look any different than before, and what resolution does each monitor report receiving? It should be in the monitor's OSD somewhere, usually in the info section.

[l337fool]

(08-09-2023 11:20 AM)ToastyX Wrote:

(08-08-2023 07:55 PM)l337fool Wrote:  Just a suggestion but maybe provide a fork for new GPUs (perhaps in the form of a 2nd exe in the zip folder labeled as such). It sucks when a standardization organization and/or manufacturer drop the ball like this. In my particular situation all I am looking to do is change the report PQ values of my display which are incorrect (clipping at 950 nits when it should be 1150 nits). Whatever you ultimately decide to do that provide me with the ability to address that concern will be greatly appreciated.

Does deleting the "Extension override" data block make a difference? What about if you leave the data block and add two additional extension blocks?

No (and also it shows the need to restart in the profile drop down even when I do).
I'm unsure on how to precisely do the second step.
