Custom Resolution Utility (CRU)
08-15-2015, 04:38 PM
Post: #1561
RE: Custom Resolution Utility (CRU)
(08-15-2015 01:58 PM)anonimussi Wrote:  I just tried to use your Tool and Therefor Used the restart tool inside the folder. Now my Windows does not work properly. It Starts and in the Login screen everything just stays black. After that the background loads, but nothing else. What am i supposed to do?
Boot into safe mode and run reset-all.exe.

Can you describe what happened? Did the display work after running restart.exe or did it stay black? If it worked, then it should have worked after restarting Windows. If it stayed black, then pressing F8 should have reset everything temporarily and restored the display. If it just rebooted, then the driver crashed for some reason.
Find all posts by this user
Quote this message in a reply
08-15-2015, 04:41 PM
Post: #1562
RE: Custom Resolution Utility (CRU)
(08-14-2015 07:04 PM)kx11 Wrote:  my Monitor is acer xb270hu , for the life of me i can't get custom res to work in Nvidia CP , you know like 3840x2160 @ 60fps

my PC can run 4k @ 60 easily but something in windows 10 is blocking it from happening
The Acer XB270HU is a 2560x1440 monitor. It doesn't support 3840x2160. You need to use DSR if you want 3840x2160, not custom resolutions.
Find all posts by this user
Quote this message in a reply
08-15-2015, 09:23 PM
Post: #1563
RE: Custom Resolution Utility (CRU)
(08-15-2015 04:41 PM)ToastyX Wrote:
(08-14-2015 07:04 PM)kx11 Wrote:  my Monitor is acer xb270hu , for the life of me i can't get custom res to work in Nvidia CP , you know like 3840x2160 @ 60fps

my PC can run 4k @ 60 easily but something in windows 10 is blocking it from happening
The Acer XB270HU is a 2560x1440 monitor. It doesn't support 3840x2160. You need to use DSR if you want 3840x2160, not custom resolutions.

man i know that , it used to work so nicely on windows 8.1

i mean i could've enabled 7000x3000 if want to back then
Find all posts by this user
Quote this message in a reply
08-16-2015, 11:00 AM
Post: #1564
RE: Custom Resolution Utility (CRU)
(08-15-2015 04:41 PM)ToastyX Wrote:
(08-14-2015 07:04 PM)kx11 Wrote:  my Monitor is acer xb270hu , for the life of me i can't get custom res to work in Nvidia CP , you know like 3840x2160 @ 60fps

my PC can run 4k @ 60 easily but something in windows 10 is blocking it from happening
The Acer XB270HU is a 2560x1440 monitor. It doesn't support 3840x2160. You need to use DSR if you want 3840x2160, not custom resolutions.

You can technically use higher resolutions than the monitor supports but there are some limits and the refresh rate may be limited. I actually got a 1920x1080 screen to display 1920x1440@120hz (!) without going out of range, but this was tricky...The default vertical total didn't work. it would show a display but would show "Out of range!" on the OSD. Then it would make me select a new input. Re-selecting displayport (or DVI) would close the out of range error afterwards but I could not do anything in the OSD.

I got it working without an out of range error by increasing the VT to 1500. The OSD actually reported the resolution correctly as 1920x1440, so this was not a fluke.

Masterotaku got 2560x1440@60hz working on his XL2411z, but he said this was GPU scaled (no idea if you can gpu scale UPWARDS). not DSR btw.
Find all posts by this user
Quote this message in a reply
08-16-2015, 11:08 AM
Post: #1565
RE: Custom Resolution Utility (CRU)
Wanted to share that with CRU I was able to set the pixel clock to more than 400 Mhz on a CRT monitor.
A functional resolution was 2560*1536@72 (through the VGA port), though the vertical number could be set still higher.

I also use MonInfo to create the .INF files (from the CRU saves), which can be used as a monitor driver, in which all non standard resolutions and refresh rates are already described.

Thanks for this wonderful utility Wink
Find all posts by this user
Quote this message in a reply
08-16-2015, 12:25 PM
Post: #1566
RE: Custom Resolution Utility (CRU)
(08-15-2015 09:23 PM)kx11 Wrote:  man i know that , it used to work so nicely on windows 8.1

i mean i could've enabled 7000x3000 if want to back then
CRU doesn't deal with scaled resolutions. Scaled resolutions are virtual resolutions. If you can't create a scaled resolution using the NVIDIA control panel with Windows 10, then that's a driver-specific limitation that you would have to bug NVIDIA about.
Find all posts by this user
Quote this message in a reply
08-16-2015, 12:26 PM
Post: #1567
RE: Custom Resolution Utility (CRU)
(08-16-2015 11:00 AM)falkentyne Wrote:  You can technically use higher resolutions than the monitor supports but there are some limits and the refresh rate may be limited.
Some monitors can scale down higher resolutions, but not the Acer XB270HU.

(08-16-2015 11:00 AM)falkentyne Wrote:  Masterotaku got 2560x1440@60hz working on his XL2411z, but he said this was GPU scaled (no idea if you can gpu scale UPWARDS). not DSR btw.
Scaled resolutions are different. CRU doesn't deal with that.
Find all posts by this user
Quote this message in a reply
08-16-2015, 12:27 PM
Post: #1568
RE: Custom Resolution Utility (CRU)
(08-16-2015 11:08 AM)Nazar Wrote:  Wanted to share that with CRU I was able to set the pixel clock to more than 400 Mhz on a CRT monitor.
A functional resolution was 2560*1536@72 (through the VGA port), though the vertical number could be set still higher.
What video card? Are you using the pixel clock patcher? Both AMD and NVIDIA have 400 MHz pixel clock limits for VGA in their drivers, but the AMD pixel clock patch can get around that. I don't have a solution for NVIDIA.

(08-16-2015 11:08 AM)Nazar Wrote:  I also use MonInfo to create the .INF files (from the CRU saves), which can be used as a monitor driver, in which all non standard resolutions and refresh rates are already described.
What about the INF files that CRU creates? That should have been fixed in 1.0.1 based on your feedback.
Find all posts by this user
Quote this message in a reply
08-17-2015, 05:15 AM (Last edited: 08-17-2015, 05:20 AM by KVorkian)
Post: #1569
RE: Custom Resolution Utility (CRU)
Great program, thanks for developing it!

I have one issue... my main monitor will not work with Nvidia Surround, though the left and right secondary screens work perfectly. Here's the details:

I have an Acer XB270HU 27" G-Sync display and tring to get tri-monitor Nvidia surround working with an Asus VW266H and a VK266H. Seeing as the 2x Asus monitors are 1920x1200@60hz, I have set the XB270HU to those dimensions and refresh rate. I have set all the monitors to the exact same settings in CRU. Each and every time I click 'Enable Surround', the screens flicker for a few seconds and the 2x Asus start working in Surround, but the center XB270HU just goes black with no response. I have also tried dropping the refresh rate to 59.950 across all 3 in an attempt to get it working without success.

It would seem that without setting everything correctly you would not even get the option to click "Enable Surround", I just have no idea how I could get to this stage and have the Acer shut down. FYI it is a 27" G-Sync monitor 144hz 2560x1440 native res display. The other 2 screens are older models.

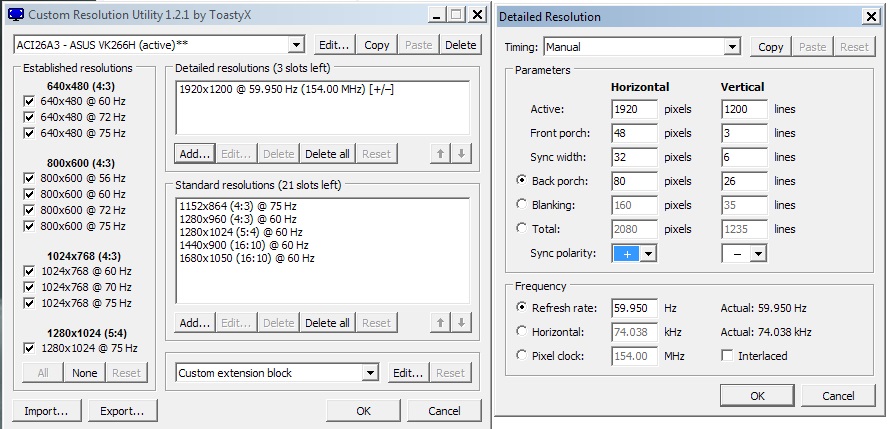

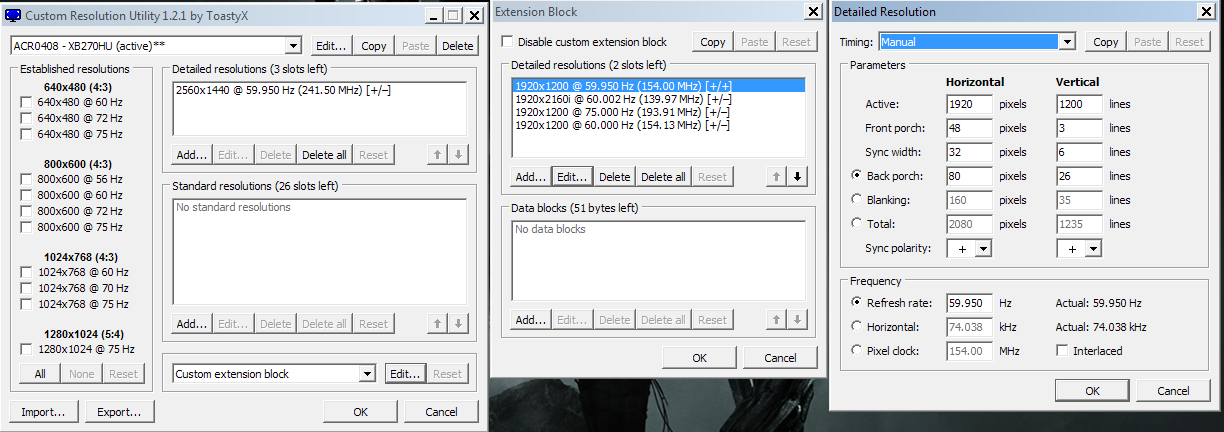

Here are snapshots of the CRU settings for all 3 monitors:





(I was messing with the Sync polarity [+] and [-] while testing so that's why the Acer snapshot is different in these pics. It still doesn't work no matter what I set).

Any clues you can think of?

Thanks!
Find all posts by this user
Quote this message in a reply
08-17-2015, 12:33 PM
Post: #1570
RE: Custom Resolution Utility (CRU)
(08-17-2015 05:15 AM)KVorkian Wrote:  I have an Acer XB270HU 27" G-Sync display and tring to get tri-monitor Nvidia surround working with an Asus VW266H and a VK266H. Seeing as the 2x Asus monitors are 1920x1200@60hz, I have set the XB270HU to those dimensions and refresh rate.
The Acer XB270HU doesn't support non-native resolutions. This setup is not possible unless the ASUS monitors can scale down 2560x1440, which isn't likely.
Find all posts by this user
Quote this message in a reply
